UVA, UVB and UVC radiation tester and analyzer
Three Modes:
- Meter Mode with peak hold, Numerical display of UVA UVB and UVC values (2 samples/second)
- Oscilloscope Slow for verifying bulb activation time (1 sample/second)
- Oscilloscope Fast, for verifying if light sources are pulsed or steady (1000 samples/second)
Specs:
- Internal Lithium Battery runs for 12 hours on single charge
- Micro USB charging port
- Maximum UVA Level: 400W/m2 (approx 3x brighter than sunlight)
- Minimum UVA Sensitivity: 0.4W/m2 (1/1000 of Maximum)
- Limited lifetime warranty; 2 year full warranty and 50% lifetime
- Dimensions: 73mm(2.9in) x 28mm(1.1in) x 20mm(0.8in)

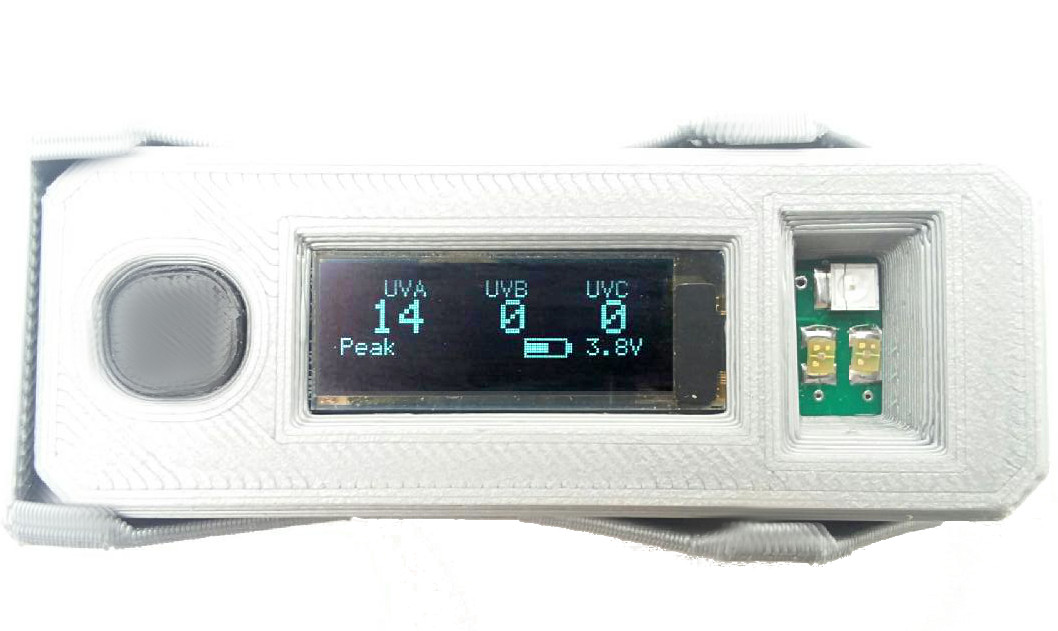

- OLED display
- USB virtual COM Port RS232 model available for lab testing and automation by request

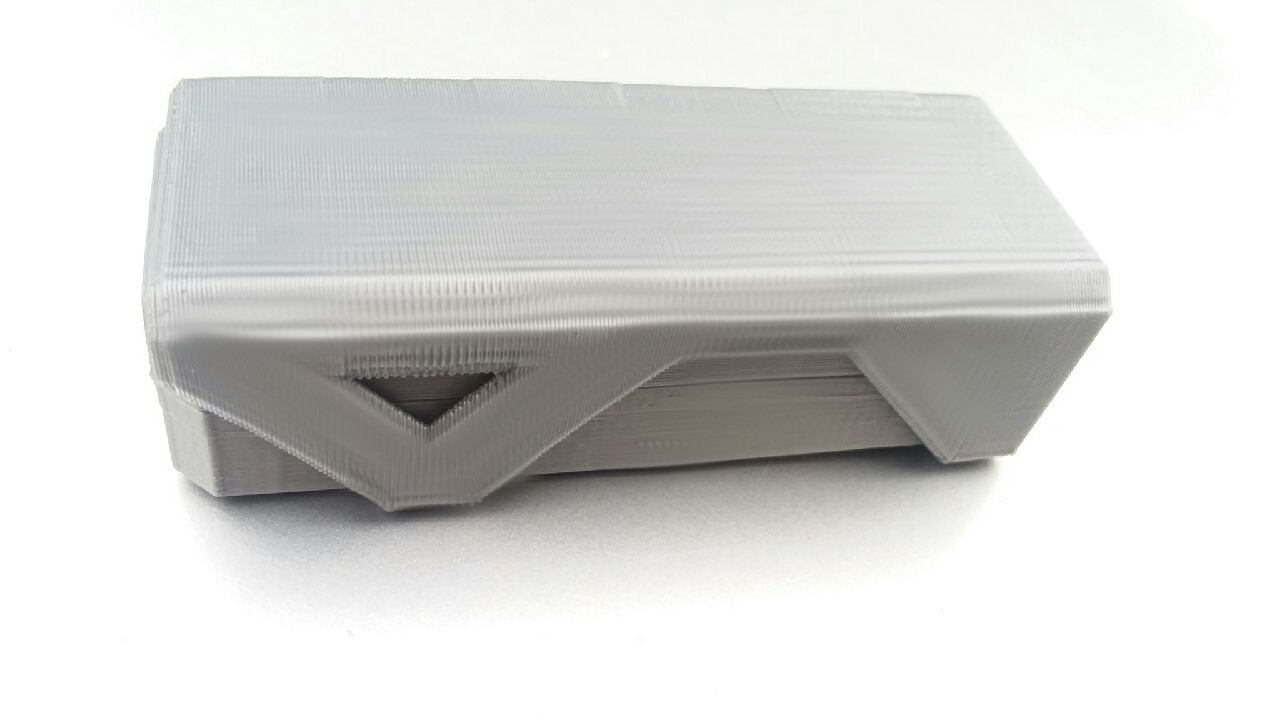

- Includes Cover Protection Slide
- Requires a micro USB cable for charging
- Plastics have been 3D printed (production plastics not available yet)
- Price intended to increase as these are 3D printed beta version
|
|
